SILICONE RESIN INTRODUCTION
|

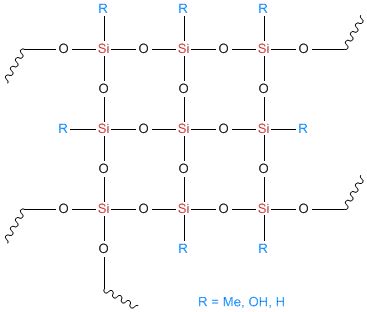

Silicone resins are a type of silicone material which is formed by branched, cage-like oligosiloxanes with the general formula of RnSiXmOy, where R is a non reactive substituent, usually Me or Ph, and X is a functional group H, OH, Cl or OR. These groups are further condensed in many applications, to give highly crosslinked, insoluble polysiloxane networks.
![](../images/silane_structure/silicone_resin.gif)
When R is methyl, the four possible functional siloxane monomeric units are described as follows:
• "M" stands for Me3SiO,
• "D" for Me2SiO2,
• "T" for MeSiO3 and
• "Q" for SiO4.
Note that a network of only Q groups becomes fused quartz.
The most abundant silicone resins are built of D and T units (DT resins) or from M and Q units (MQ resins), however many other combinations (MDT, MTQ, QDT) are also used in industry.
Silicone resins represent a broad range of products. Materials of molecular weight in the range of 1000-10 000 are very useful in pressure sensitive adhesives, silicone rubbers, coatings and additives.
Silicone resins are prepared by hydrolytic condensation of various silicone precursors. In early processes of preparation of silicone resins sodium silicate and various chlorosilanes were used as starting materials. Although the starting materials were the least expensive ones (something typical for industry), structural control of the product was very difficult. More recently, a less reactive tetraethoxysilane - (TEOS) or ethyl polysilicate and various disiloxanes are used as starting materials.
|
MQ, or polydimethylsiloxane (PDMS),denotes a polymer in which two methyl groups are bound to the siloxane
backbone.
VMQ stands for a polydimethylsiloxane in which a small number of methyl groups have been replaced by vinyl groups.
PVMQ stands for an VMQ in which a small number of methyl groups have been replaced by phenyl groups.
FVMQ stands for an VMQ in which a small number of methyl groups have been replaced by trifluoropropyl substituents. |
|
